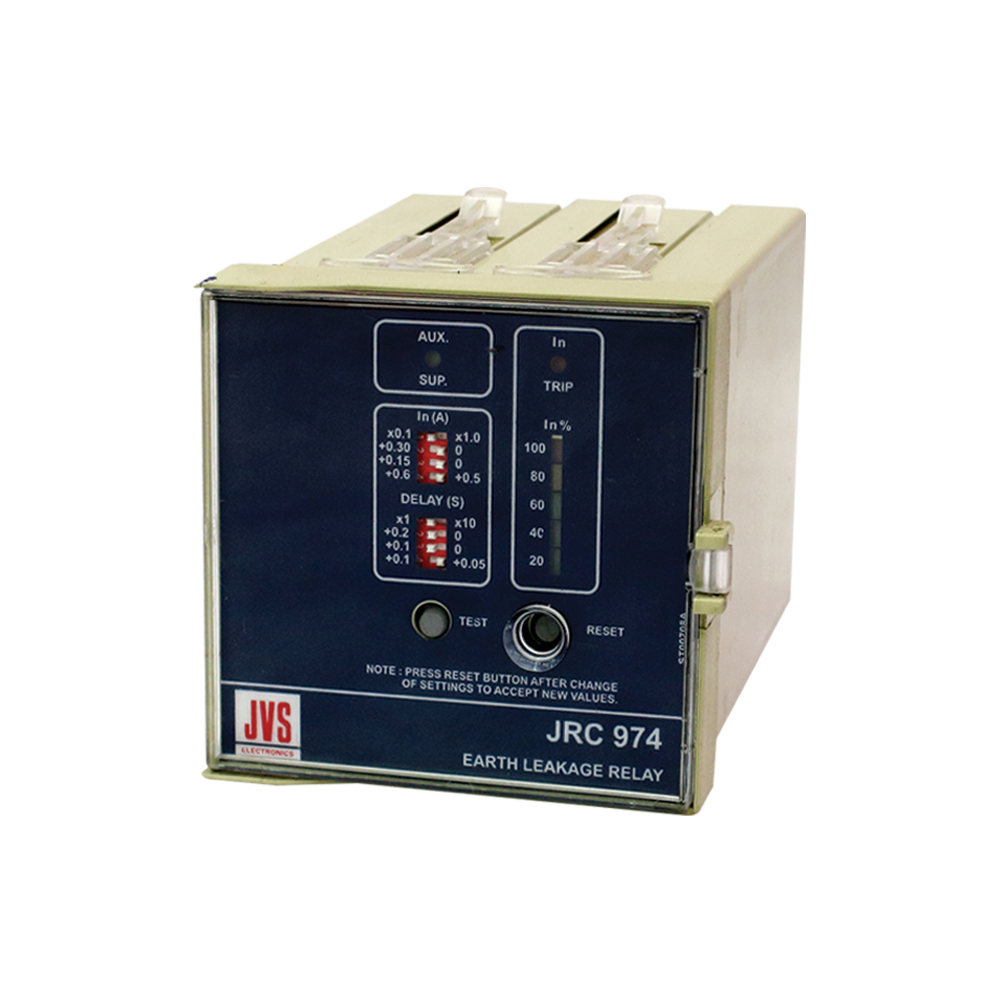

Earth Leakage Relay (0.05 To 1.0A)
₹19,219.20
Product Code: JRC 974
Time line :Products will be shipped within 3 weeks from the date of order
Stock In Stock
Viewed 4795 times
Product Description
Features
- Bar graph indication of leakage current
- Remote reset and test facility
- Wide range of setings
- Low burden
Application
The relay provides time graded earth leakage protection for generators, transformers, capacitors, feeder etc
Principle of Operation
The relay provides earth leakage protection for power systems. The relay operating time is determined by a programmable definite time delay. The relay measures the earth leakage current from the CBCT and if it exceeds the set threshold, the relay extends a trip signal after the operating
time. The relay output contacts are self reset type. TEST bution facilitates verification of relay
contacts.
Ratings
SETTINGS
OVER LOAD RATINGS
Burden
Current rating ( In ) :
0.03 to 0.1A /0.3 to 1.0A
0.03 to 0.1A / 0.15 to 0.50A
0.3 to 1.0A/ 1.5 to 5.0A
0.03 to 0.1A / 0.15 to 0.50A
0.3 to 1.0A/ 1.5 to 5.0A
Auxiliary supply :
110V/220V AC
Current setting :
0.03 to 0.1A in steps of 0.01A
0.3 to 1.0Ain steps of 0.1A
0.03 to 0.1A in steps of 0.01A
0.15 to 0.5 in steps of 0.05A
0.3 to 1.0A in steps of 0.1A
1.5 to 5.0A in steps of 0.5A
0.3 to 1.0Ain steps of 0.1A
0.03 to 0.1A in steps of 0.01A
0.15 to 0.5 in steps of 0.05A
0.3 to 1.0A in steps of 0.1A
1.5 to 5.0A in steps of 0.5A
Current input :
10 times the rated continuosly
Auxiliary circuit :
< 3W (Non-operated)
< 6W ( operated )
< 2VA at rated curren
< 6W ( operated )
< 2VA at rated curren
ACCURACY
Contact Ratings
Mechanical Design
STANDARD COMPLIANCE
Operating value :
±5%
Operating time :
± 5% or± 30ms (which ever is higher)
Output contacts - 1 & 2:
10A at 24V DC / 230V AC
Weight :
Approximately 500g
Case Size :
96mm x 96mm x 105mm
Installation :
Flush mounting
Panel cutout :
92mm x 92mm
Accuracy Test :
IEC 60255-3
Insulation Test :
IEC 60255-5
TERMINAL DIAGRAM
