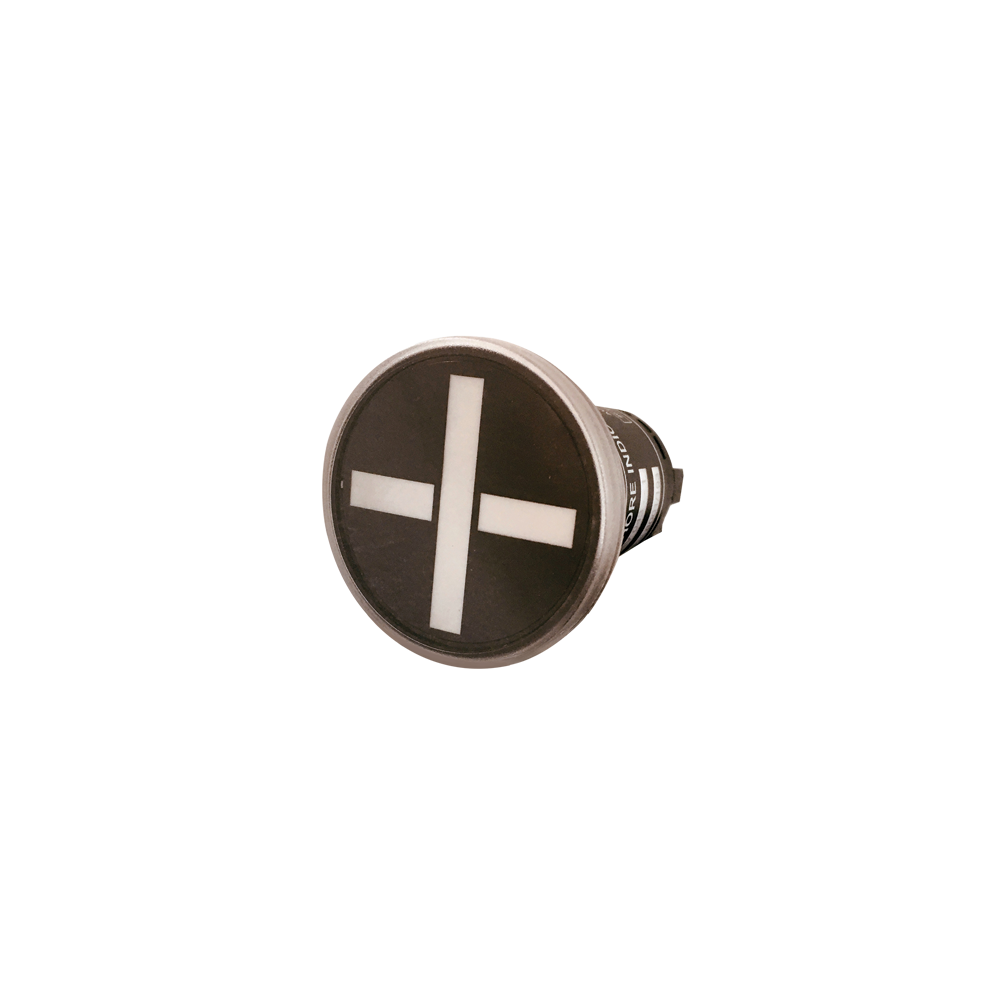

Led Semaphore Indicator for Breaker
₹2,145.00
Product Code: JAV 043
Time line :Products will be shipped within 3 weeks from the date of order
Stock In Stock
Viewed 5939 times
Categories
Cart
Account
Search
Recent View
All Categories
×
-
Products Category
- Earth Leakage Relays
- Electromechanical Auxiliary & High Speed Tripping Relays
- Electronic Hooters
- LED Indicating Lamps
- LED Semaphore Indicators
- Micro Processor Based Directional / Non-directional, Non-Communicable Current Relays
- MICRO PROCESSOR BASED INSTANTANEOUS / DEFINITE TIME AC VOLTAGE RELAYS
- Micro Processor Based Multi Shot, Auto Reclose Relays
- Micro Processor Based Neutral Earth Resistor Monitoring Relays
- Micro Processor Based PT Fuse Failure Relays
- MICRO PROCESSOR BASED RESTRICTED E/F RELAYS
- Micro Processor Based Trip Circuit Supervision Relays
- Numerical Check Synchronizing Relays
- Numerical Directional / Non-directional, Non-Communicable Current Relays
- Numerical Non-directional Inverse Time Current Relays Without Communication
- NUMERICAL OVERFLUX RELAYS
- Numerical Transformer Differential Relays
- Panel Accessories
- Push Buttons
- Semaphore Indicators
- Terminal Blocks & Plugs for Testing
- Time Delay Relays
- Two Stage Frequency Relays
- Micro Processor Based Inverse Time Non- Directional, Non-communicable Current Relays
- Non-directional Inverse Time Current Relays With/without Communication
- Micro Processor Based Inverse Time Non-directional, Non-communicable Current Relays
- Micro Processor Based Instantaneous / Definite Time Ac Voltage Relays
- Micro Processor Based Instantaneous / Definite Time Battery E/F Relays
- Micro Processor Based Instantaneous / Definite Time Current Relays
- Micro Processor Based Instantaneous / Definite Time Dc Voltage Relays
Shopping Cart
×
Your shopping cart is empty!
Search
×
Recent View Products
×
Product Description
Features
- LED based design
- Clear and High Visibility
- Two different LED indications for Breaker/Isolator Open/Closed Status
- Compact, dust proof case
- Easy to mount
- Low power consumption
Application
Automatic bright LED visual status indication of circuit breakers, isolators and earth switches on mimic diagram of control panels.
Description
Semaphore indicator consists of an electronic circuit which indicates RED line and GREEN line
indication. When the circuit breaker or isolator is in closed position RED line will glow and provide
continuity in the mimic diagram. When the circuit breaker or isolator is in opened position GREEN
line will glow, this position is at right angle to the mimic. The indicator is housed in a
cylindrical molded case and is designed for Flush mounting on control panels. A mounting clamp is
provided on the case for fixing on the panel.
Universal Voltage :
24-250 AC/DC
Insulation :
2kV RMS, 50 Hz for 1 minute or 2.5kV RMS,
50Hz for 1 second between all terminals case
50Hz for 1 second between all terminals case
Working Temperature :
-20 to + 60°C
Body Material :
Polycarbonate
Protection degree :
IP54
Operating life at ambient temperature :
> 1 lakh hours
Panel Cutout Dimension :
42 dia.
Terminal Diagram
ORDERING INFORMATION
Type No :
JAV 043
Voltage Rating :
24V-250V (Universal Voltage)
